Zinsco electrical panels are found in some older homes. Finding one does not automatically mean the house has an active electrical emergency, but it should not be treated like an ordinary modern panel.
The panel's identity, condition, past modifications, insurance implications, and the cost of possible replacement should be understood before you purchase the property.
What Is a Zinsco Electrical Panel?
Zinsco manufactured residential electrical panels and circuit breakers that were installed during the middle decades of the twentieth century. Related equipment may also carry Sylvania or GTE Sylvania branding.
Some Zinsco designs use narrow circuit breakers that connect along vertical bus bars inside the panel. The breakers may have color-coded handle tips or center markings, although appearance varies.
These are legacy electrical products. Their age alone does not prove that a particular panel has failed, but age increases the importance of understanding its present condition and whether replacement is recommended.

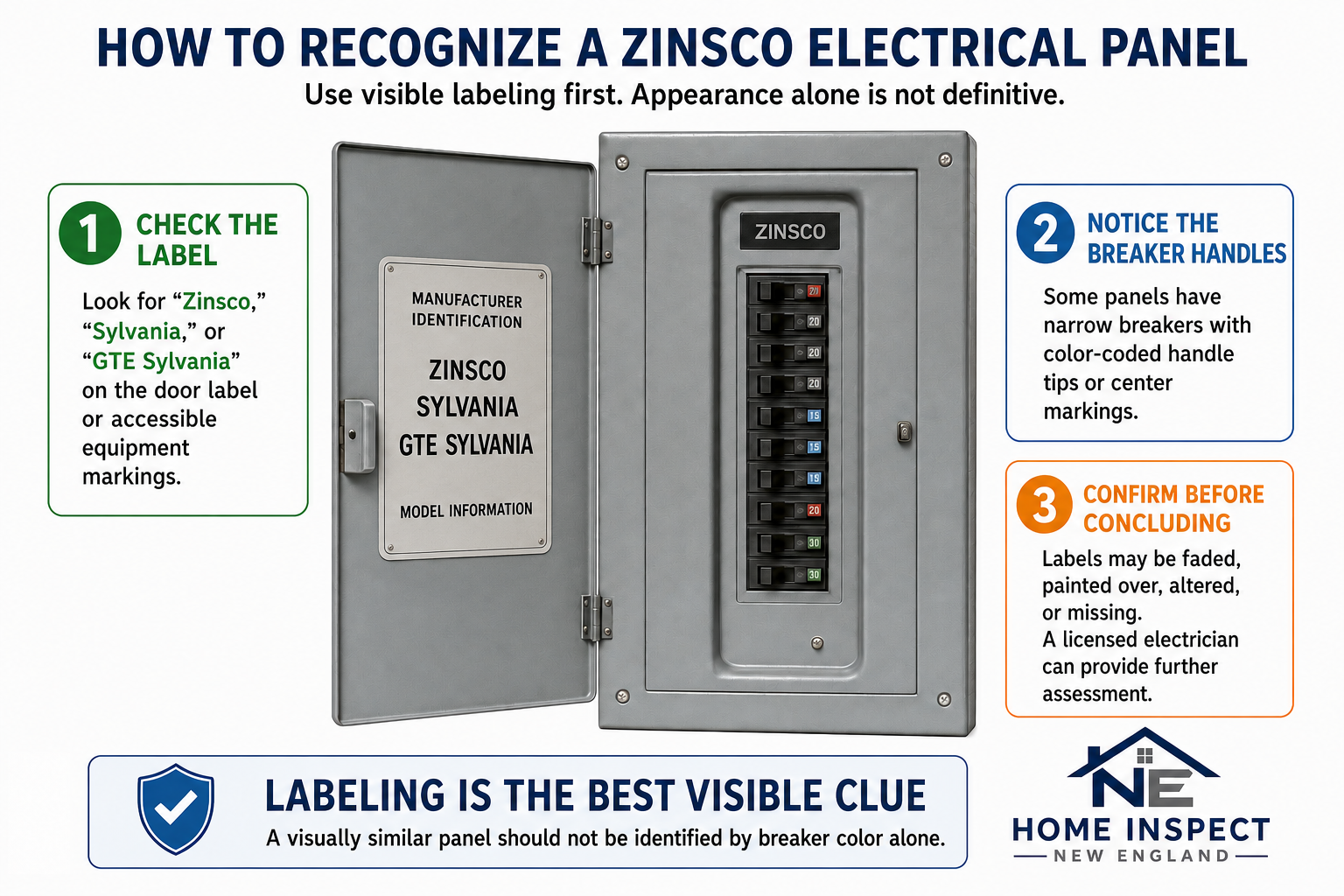

How Can I Recognize a Zinsco Panel?
Start with visible manufacturer labeling rather than breaker color alone.
The normal hinged panel door may contain labels or equipment markings that read:
- Zinsco
- Sylvania
- GTE Sylvania
Some panels have a narrow vertical arrangement of breakers with colored handle tips or center markings. However, other equipment can look similar, and older panels may contain replacement or mixed components.
Labels may be faded, painted over, damaged, altered, or missing. When positive identification is uncertain, a licensed electrician can provide further assessment.
Why Are Zinsco Panels a Concern?
The concern is not simply the name on the door. It involves the age of the equipment and the condition of the connection between the circuit breakers and the panel's internal bus bars.
Industry technical guidance and field observations have reported conditions involving:
- Deterioration or corrosion at breaker-to-bus connections
- Overheating and damage at connection points
- Breakers that become difficult to remove from the bus
- Breakers or internal mechanisms that may not disconnect current as expected
- Past repairs, substitutions, or incompatible components
The presence of a Zinsco panel does not prove that any one of these conditions is occurring at the time of the inspection. It does mean that further assessment and replacement planning are commonly recommended.

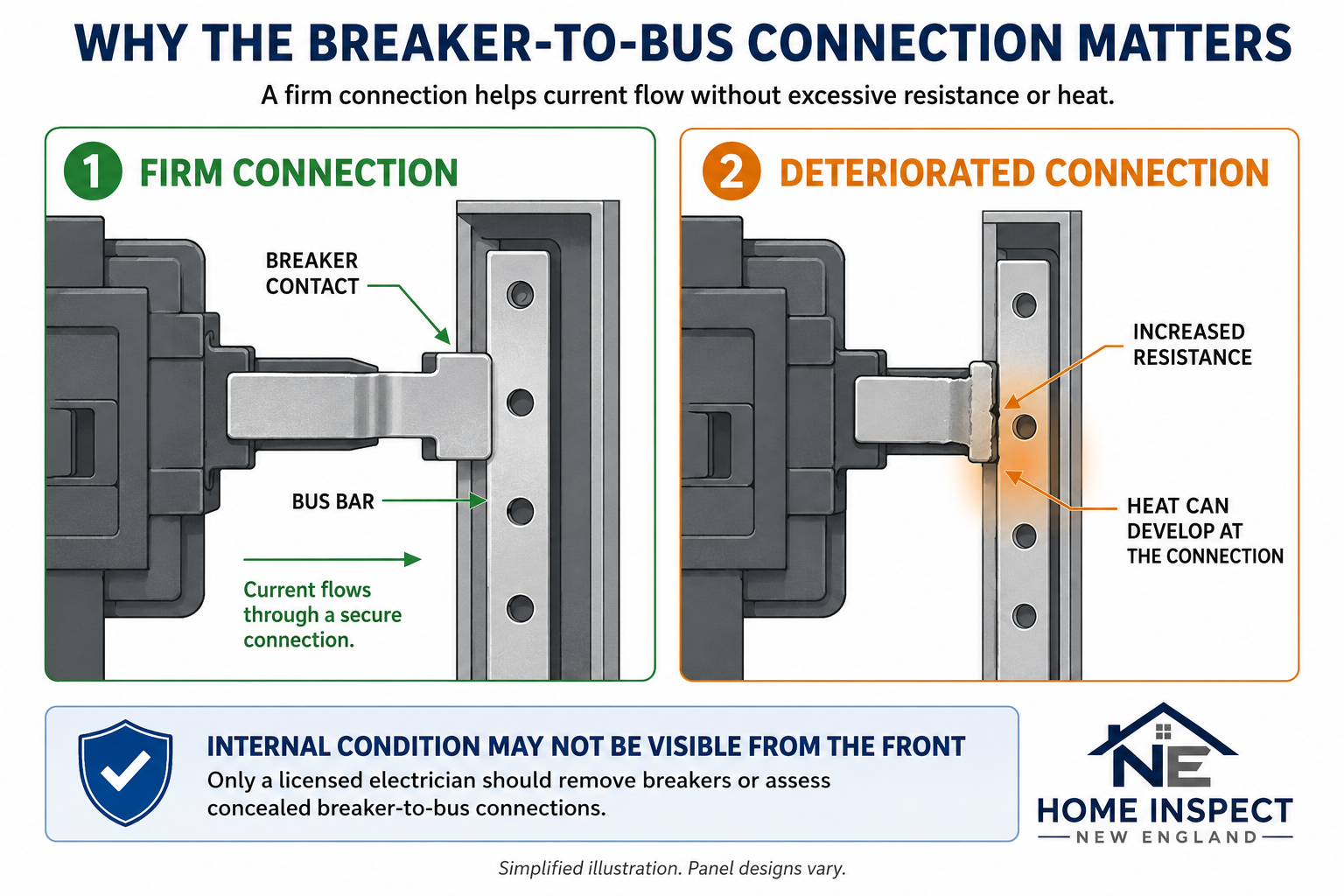

What Is the Breaker-to-Bus Connection?
The bus bars distribute electricity inside the panel. Each circuit breaker makes an electrical connection to a bus bar and then supplies power to a branch circuit in the home.
That connection should remain firm. If a connection deteriorates or develops increased electrical resistance, heat can develop at the contact point. Damage may be concealed behind the deadfront and may not be visible from the front of the panel.
Only a licensed electrician should remove breakers or evaluate concealed breaker-to-bus connections.
Does a Panel That Appears to Work Normally Mean It Is Safe?
Not necessarily.
Lights, receptacles, and appliances can operate normally while a panel still has a concealed connection problem or a breaker that may not respond correctly during an overload or fault.
Likewise, the absence of visible overheating does not confirm the condition of the internal bus bars or breaker contacts. Normal household use is not a performance test of every circuit breaker.
Was Every Zinsco Panel Recalled?
Do not assume that it was.
This article does not rely on a claim that every Zinsco or Sylvania-Zinsco panel was covered by a broad federal recall. Recall status is also not a certification of the present condition or future performance of equipment that has been in service for decades.
The practical questions are whether the panel has been correctly identified, what a licensed electrician recommends, what replacement may involve, and whether an insurer will provide coverage.

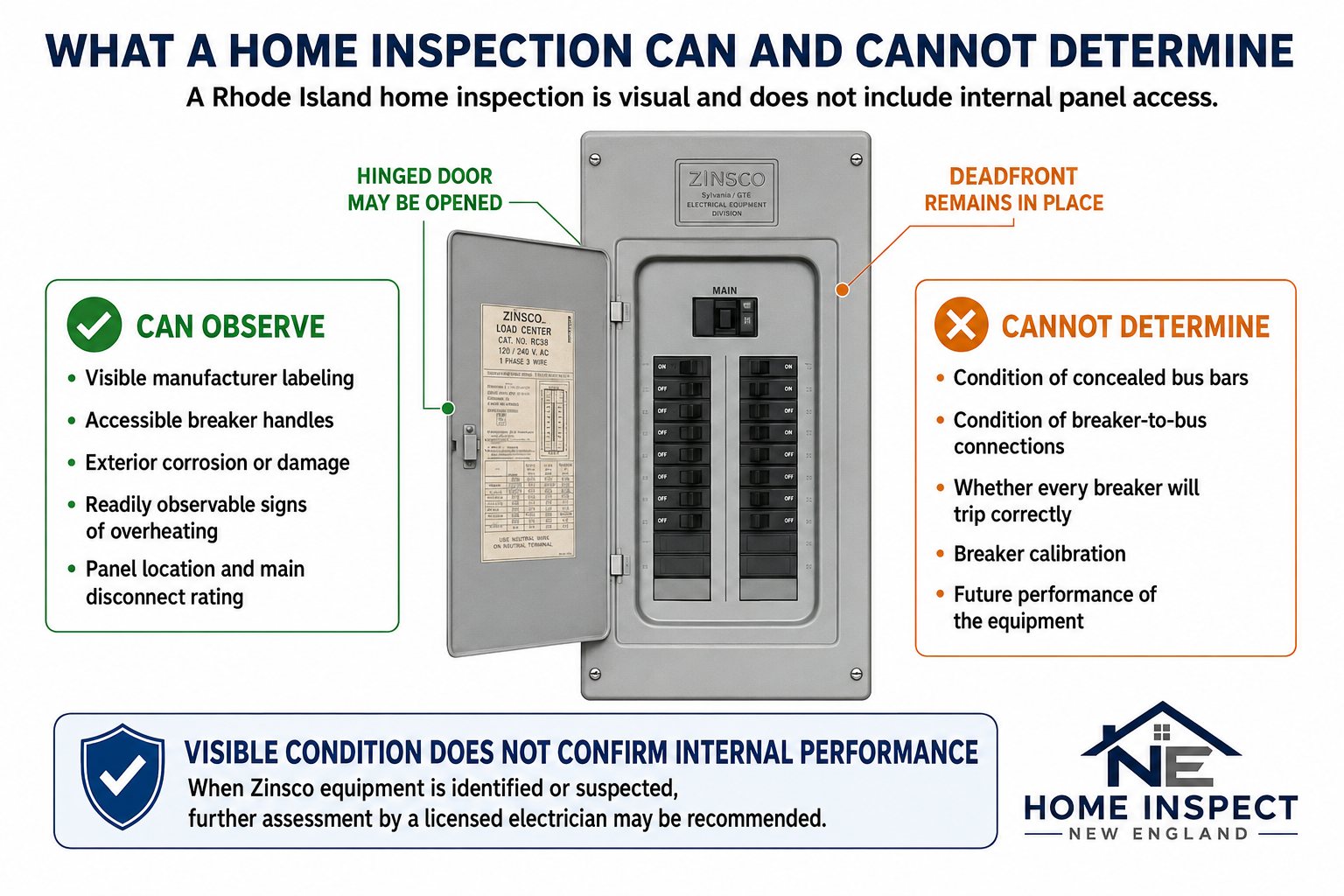

Can a Home Inspector Determine the Internal Condition of the Panel?
No.
A Rhode Island home inspector may open the normal hinged panel door when it is safe and readily accessible. This can allow observation of visible labeling, accessible breaker handles, the panel location, the main disconnect rating, and exterior conditions that are readily observable.
Home Inspect New England does not remove the deadfront, enter or internally access the panel, remove breakers, operate circuit breakers, create overloads, test breaker calibration, or examine concealed breaker-to-bus connections.
The absence of visible corrosion, overheating, or damage does not confirm that the panel's protective devices or internal connections will perform as intended.
Does a Zinsco Panel Need to Be Replaced?
Replacement is commonly recommended, but the appropriate next step should be determined by a licensed electrician who has evaluated the installation.
The electrician may consider:
- Whether the equipment is part of the Zinsco or Sylvania-Zinsco product family
- The panel's age, service rating, and available space
- The condition of breakers, bus bars, and internal connections
- Signs of corrosion, overheating, or damage
- Whether installed breakers and conductors are properly sized and compatible
- Past modifications or replacement components
- Grounding, bonding, service equipment, and current electrical demand
- Local permit and utility requirements
Replacing one breaker may not address concerns involving the bus bars, other breakers, or the overall panel. A panel replacement can also involve related work at the service entrance, meter equipment, grounding and bonding systems, or branch-circuit wiring.
An electrician should explain the recommended scope of work and provide a written estimate.
Could a Zinsco Panel Affect Home Insurance?
Possibly.
Insurance requirements vary by company and can change. Some insurers may request an electrical evaluation, require replacement, limit available coverage, or decline to insure a home containing certain legacy electrical panels.
Contact your insurance company early in the buying process. Provide accurate information and, when possible, photographs of the panel label and breaker arrangement. Ask whether replacement is required before coverage can begin and obtain the answer in writing.
What Should I Do Before Buying the House?
If a Zinsco or Sylvania-Zinsco panel is present or suspected:
- Have a licensed electrician evaluate the electrical service and panel.
- Ask whether complete panel replacement is recommended.
- Request a written estimate for the full scope of work.
- Contact your insurance company before important purchase deadlines.
- Ask the seller for permits, invoices, or documentation of previous electrical work.
- Consider the cost and timing of the work when evaluating the property.
Do not remove the deadfront or attempt to inspect internal components yourself. Electrical panels can contain energized parts even when a main disconnect has been turned off.
Should the Panel Stop Me From Buying the House?
Not automatically.
A Zinsco panel is one condition to understand and plan for. The decision should consider the electrician's findings, the cost and timing of recommended work, insurance requirements, and the condition of the home's other major systems.
A documented replacement estimate can become part of repair planning or purchase negotiations. The goal is to make the decision with realistic information rather than ignoring the panel or assuming that its presence describes the entire house.
Rhode Island Home Inspection Note
Rhode Island's standards address visual observation of readily accessible service equipment and electrical panels. The Rhode Island Contractors' Registration and Licensing Board's Home Inspectors Bulletin 2025-01 instructs licensed home inspectors to refrain from entering or internally accessing electrical panels.
For Home Inspect New England inspections, the normal hinged panel door may be opened when it is safe and readily accessible, but the deadfront remains in place and the panel interior is not accessed.
The inspection does not include operating circuit breakers, creating overloads, testing breaker calibration, examining concealed breaker-to-bus connections, or determining the short-circuit interrupting capacity of the equipment. When visible labeling or other readily accessible information identifies or suggests Zinsco equipment, further assessment by a licensed electrician may be recommended.
The Bottom Line
Zinsco electrical panels deserve careful attention because concerns have been reported involving aging breaker-to-bus connections, concealed overheating or damage, and breaker performance.
A panel that appears to operate normally cannot demonstrate how its breakers or internal connections will perform during an overload or fault. A visual home inspection also cannot determine the condition of concealed bus bars and breaker contacts.
If Zinsco equipment is present or suspected, obtain an assessment and written estimate from a licensed electrician and contact the insurance company early. That information will help you decide how the panel affects the purchase and your plans for the home.
Home Inspect New England provides visual, non-invasive home inspections consistent with applicable Rhode Island requirements, current Board guidance, and the inspection agreement. A home inspection is not a code-compliance inspection and does not certify the future performance of electrical equipment.
